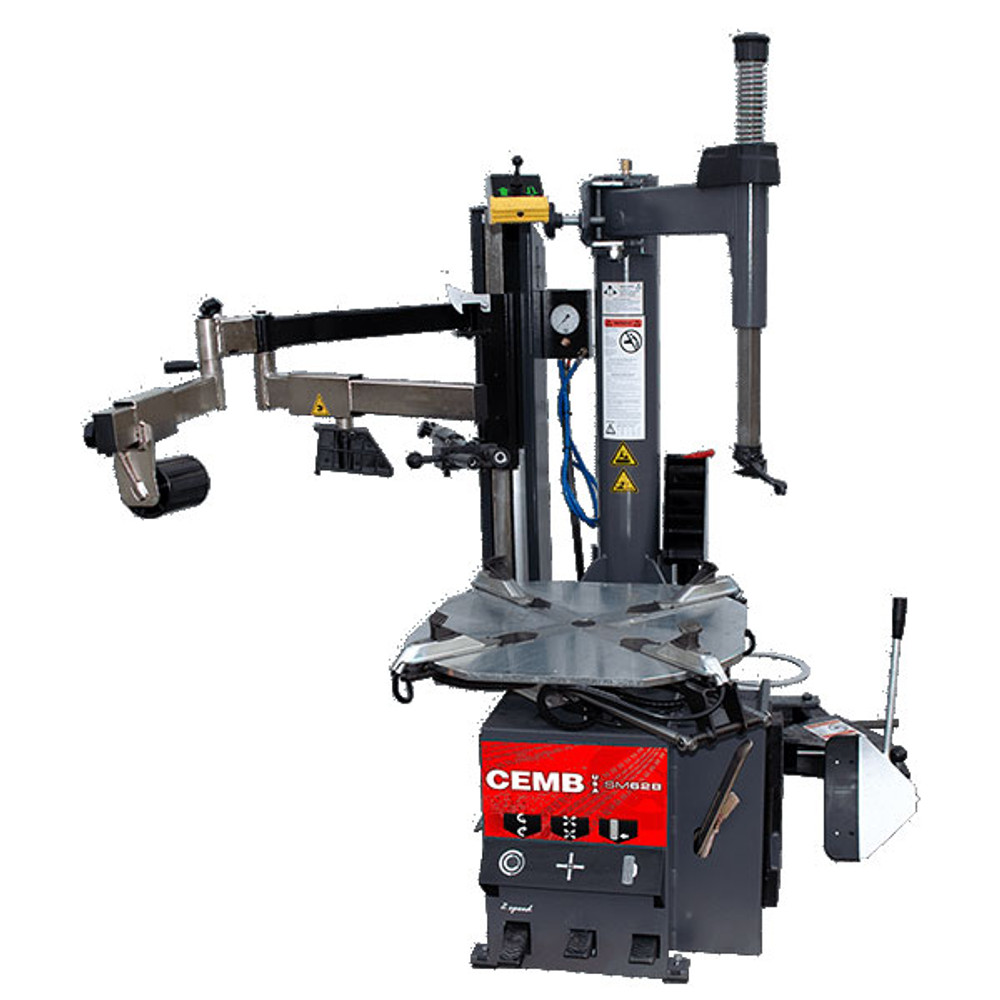

CEMB SM628BPS Advance Swing Arm Tire Changer
... people are viewing this right now
CEMB SM628BPS Advance Swing Arm Tire Changer Bead Press System Polymer Mounting Head Table Top Clamping Two Stage Inflation High Torque Motor Bead Breaker Shovel North American design adapted to tall and wide tires handles virtually all wheels up to 44″ and 15″ in width. Outside clamps rims from 12″-26″ and is self-centering with rim diameter indexing guides Standard quick-change mount head kit provides steel and polymer long-wearing mounting heads Self-centering clamping jaws with high-quality dual air cylinders; uniform clamping pressures and high clamping force reduce the possibilities of rim slippage Add a high-performance BPS (Bead Press System) for simple servicing of stiff side wall tires and deep drop center rims Heavy duty, high torque, 2-speed (8-15 rpm) 220V motor easily handles the mouse difficult sidewall tires and deep drop center rims Specifications Power Supply: 220V, 1ph, L6-20P Air Pressure: 145 psi (10 bar) Rim Diameter (Ext.): 12″ – 26″ Tire Diameter: 44″ Max. Wheel Width: 16″ Turn Table Speed: 8-15 rpm Shipping Weight: 630 lbs (286 Kg)
